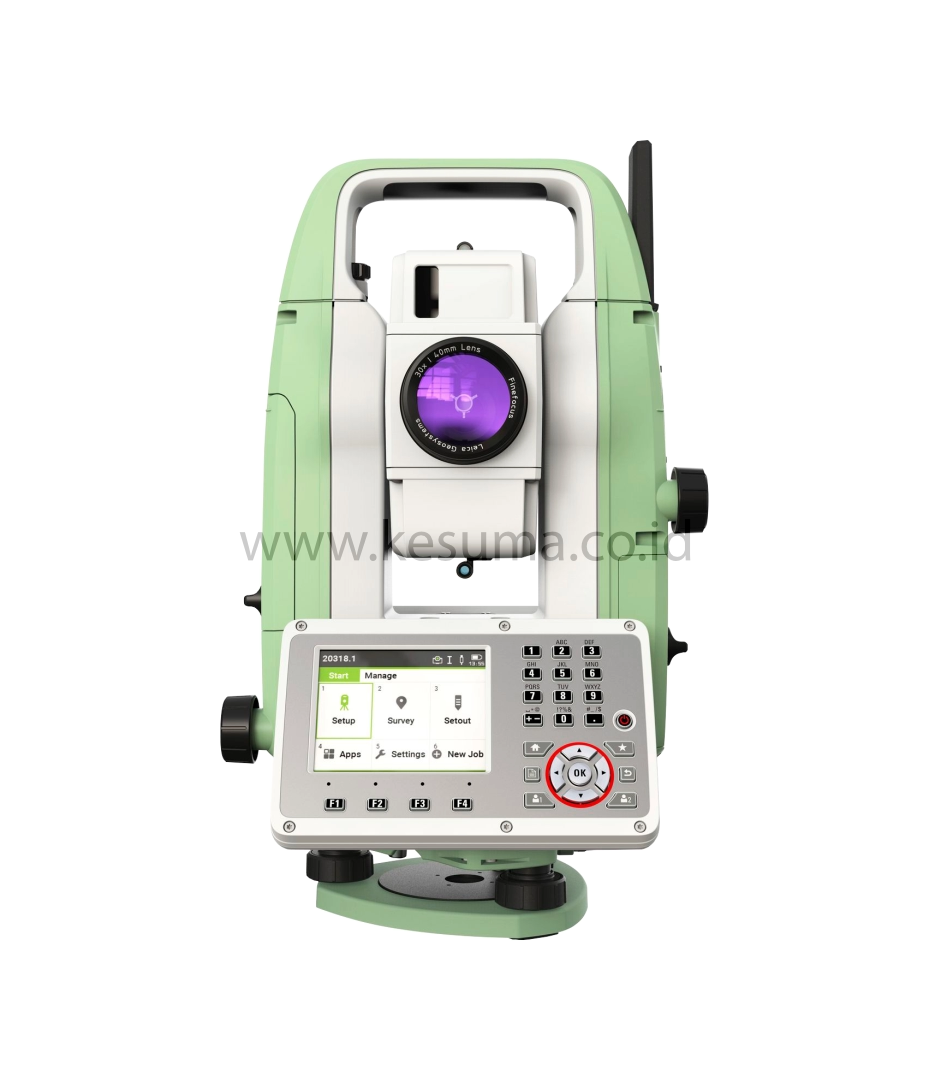

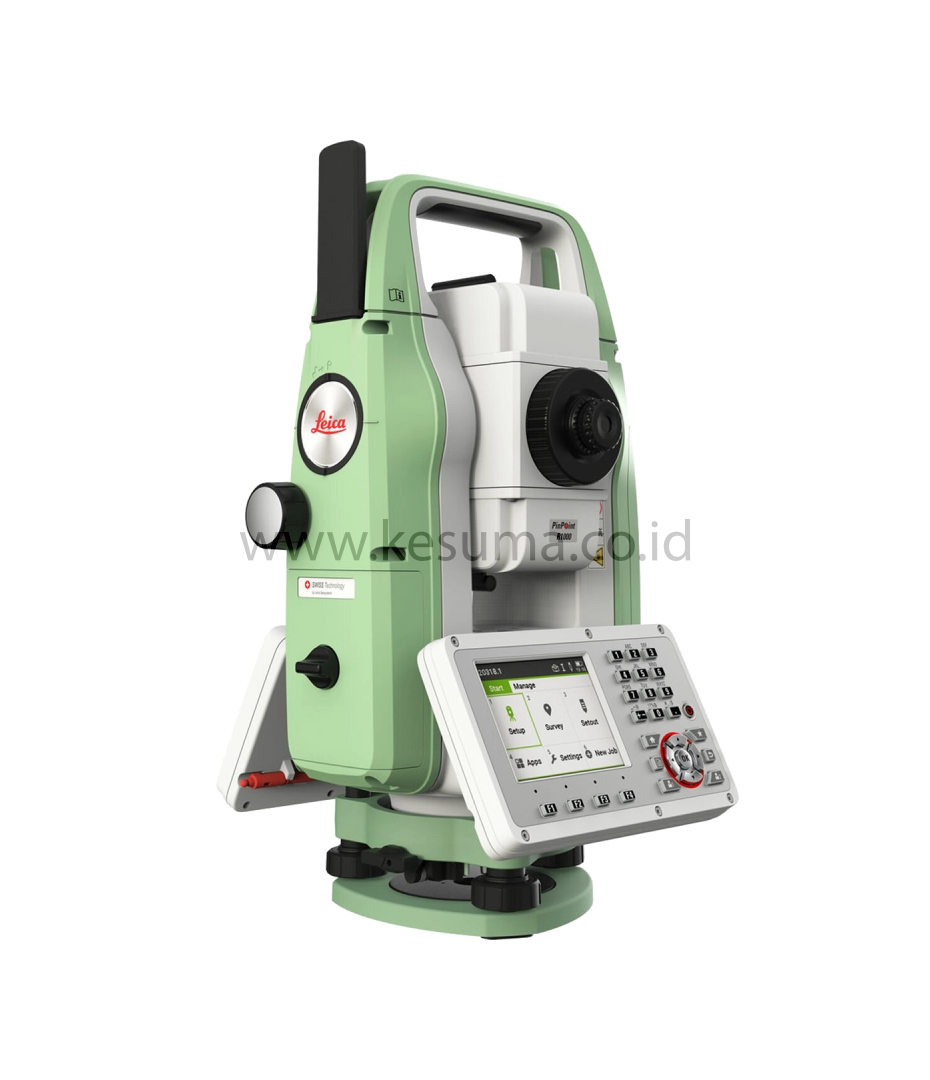

The Leica FlexLine TS07 Reflectorless Manual Total Station is high-quality surveying equipment that is used for efficient and convenient survey, stakeout, and area investigation applications. Offering a reflectorless range of up to 1,640 feet (500 m) with the R500 EDM, this manual total station also measures a reflectorless range of up to 3,280 feet (1,000 m) with the R1000 EDM and range up to 11,483 feet (3,500 m) with a single prism. It also uses the Leica FlexField software which generates stable and accurate results in any environment.

This Leica FlexLine total station has a quadruple axis compensation which combines the Hz collimation and V-index correction. Equipped with a USB stick and SD card interface, this reflectorless total station accommodates an internal flash memory of 2GB and a 1GB SD RAM. Also, the TS07 also boasts WLAN (wireless local area network) and Bluetooth connectivity for easy on-site device communication. Plus, it uses a Laserclass 2 laser plummet and optional guide light for setting out.

The FlexLine TS07 total station flaunts a 3.5-inch colored touchscreen LCD display with one illuminated keyboard. There is also an option of a second keyboard for more convenience. It features an IP66 rating which protects the instrument from dust and water. This total station uses exchangeable Li-ion batteries that power the device for up to 30 hours. In addition, the TS07 total station can automatically measure, read, and set the instrument height with the optional AutoHeight feature to minimize errors and deliver a faster setup process.

Kelengkapan dalam Box :

  • LEICA FLEXLINE TS07 Series Total Station unit
  • Adjustment pin, Allen wrench
  • Objective lens cap
  • Carrying case
  • Shoulder strap
  • Vinyl rain/ dust cover
  • Battery charger
  • Li-on battery pack
  • Instruction manual
  • USB Flash disk

Kelengkapan Aksesoris :

  • 1x Prisma Poligon
  • 1x Prisma Pole
  • 1x Pole 2,15m
  • 2x Alumunium Tripod


LEICA GEOSYSTEMS Authorized Distributor

JAKARTA : Jalan Raya Pasar Jumat No.45A Kebayoran Lama, Jakarta Selatan 12310
Telp. (021) 75917538
WhatsApp. 0878 1815 1997

BEKASI : Ruko Mega Kalimalang Kav.8 No.11, Jalan KH. Noer Ali No.1 Pekayon Jaya, Bekasi Selatan 17148 | 082122721288 (Imam)
MEDAN : Komplek Ruko NCC Blok C-5 Jl Setia Budi No. 234 Kota Medan 20132 | 081260820949 (Aidil)
PEKANBARU : Komplek Perkantoran Sudirman Raya Blok D No.1 Jalan Jendral Sudirman, Kota Pekanbaru 28125 | 08117522794 (Hairil)
SAMARINDA : Jalan Elang No.86 D, Sungai Pinang Dalam, Kec. Sungai Pinang, Kota Samarinda 75117 | 0811549988 (Ferry)
SOLO : Jalan Ahmad Yani No. 372F Pabelan Kleco Solo, Surakarta 57162 | 085727585655 (Annas)
