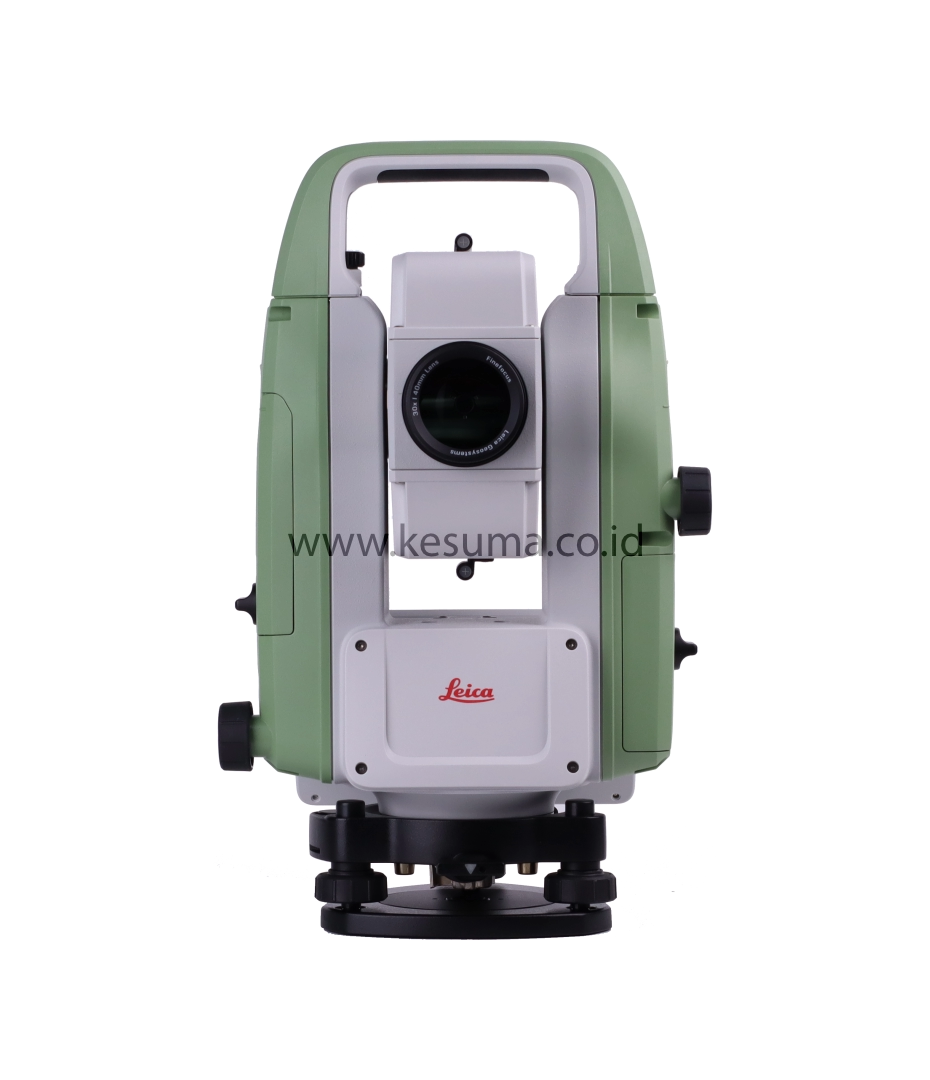

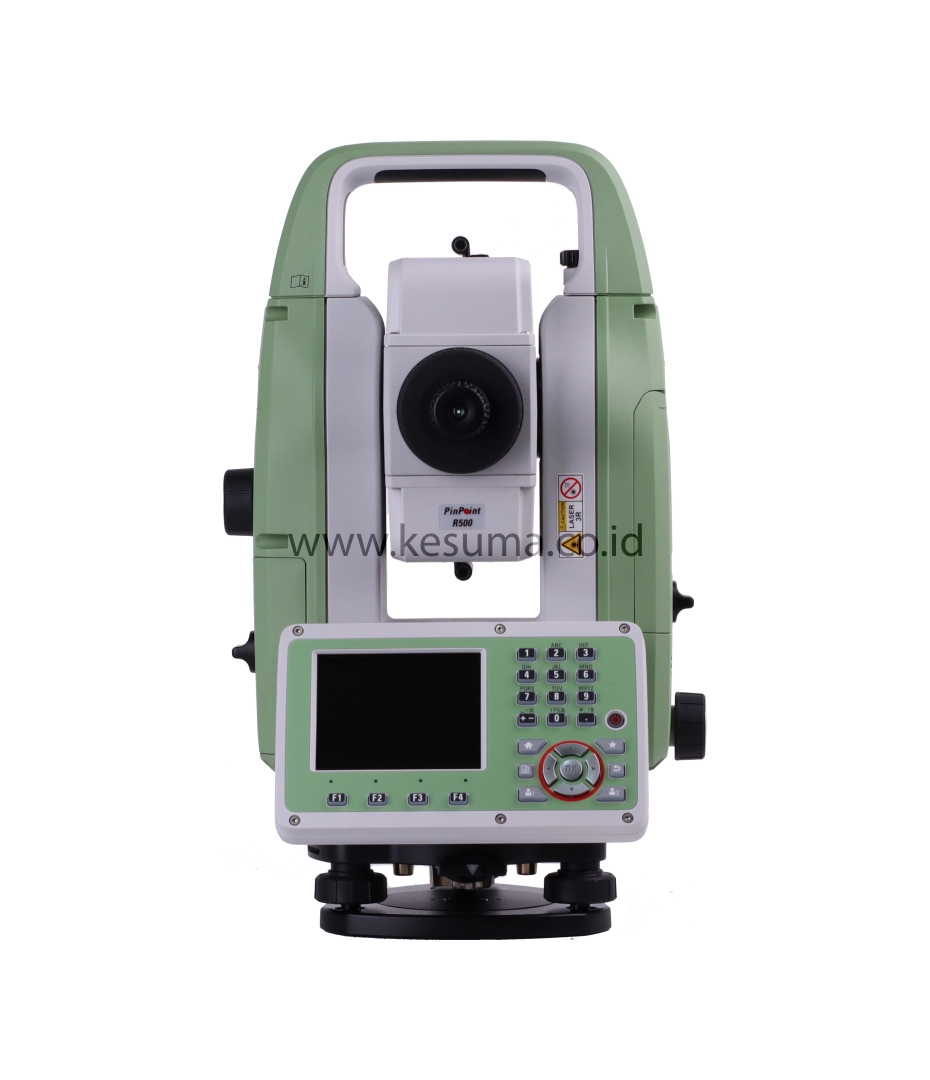

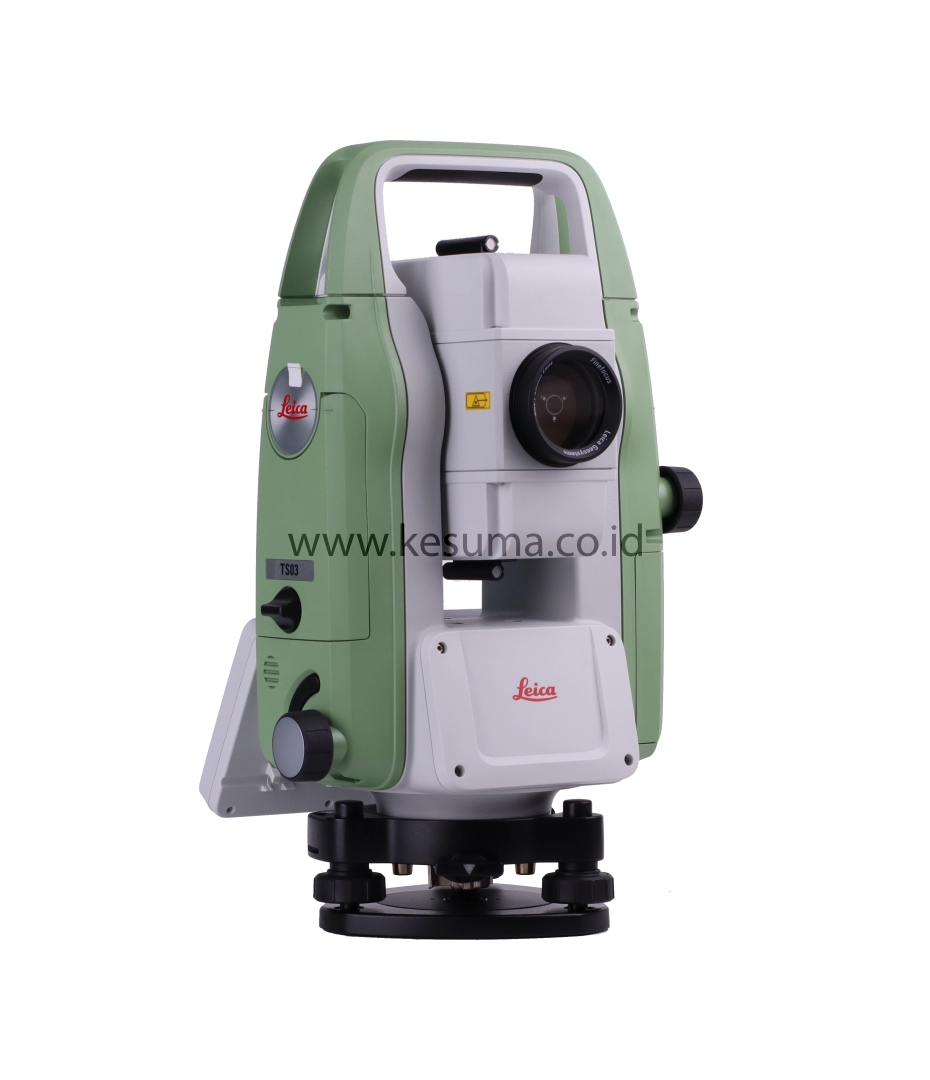

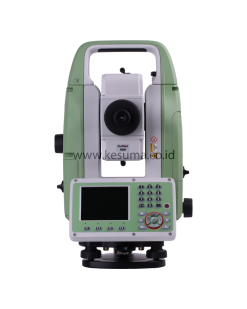

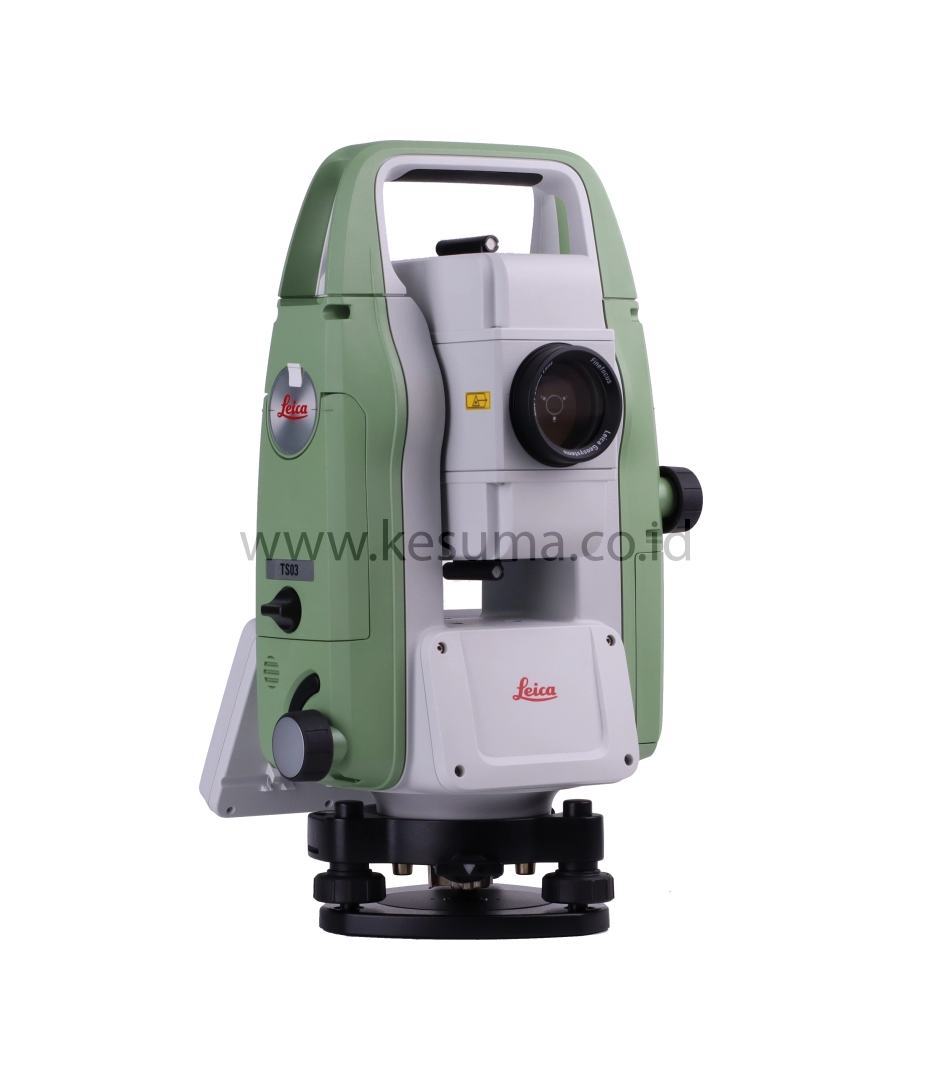

LEICA FLEXLINE TS03 TOTAL STATION

The Leica FlexLine TS03 Reflectorless Manual Total Station is one of the top-class instruments with an accurate EDM (Electronic Distance Measurement) technology that offers a reflectorless range up to 1,640 feet (500 m). This manual total station operates a range of 11,483 feet (3,500 m) using a single prism. It is also equipped with a broad application-based Leica FlexField software for better surveying and stakeout performance.
The FlexLine TS03 total station features a quadruple axis compensation that has a setting accuracy of up to 0.5 second and range of ±4’. For better target viewing, the TS03 telescope has a 30x magnification, 3” resolving power and a focusing range of 5.05 feet to infinity. It utilizes a Laserclass 2 laser plummet that covers a diameter of 0.1 inches at 4.9 feet instrument height. To easily manage data, it has an RS232 interface and a USB stick/SD card interface, which can accommodate 2GB internal flash memory and a 1GB SD card RAM.
With an IP66 rating, the Leica FlexLine TS03 is protected from dust and water. It features only one keyboard and a 3.5-inch QVGA grayscale LCD display designed to easily read results. As an additional feature, the TS03 total station is powered by an exchangeable Li-ion battery that runs up to 15 or 30 hours which is a great companion for a whole day job.

Features :

  • Accuracy 3″
  • Reflectorless range up to 1,640 feet
  • Range with single prism: 11,483 feet
  • Leica FlexField software
  • Quadruple axis compensation
  • Compensation setting accuracy: 0.5”
  • Compensation range: ±4′
  • Magnification: 30x
  • Resolving power: 3”
  • Focusing range: 5.05” to infinity
  • RS232 interface
  • 2GB internal flash memory
  • 1GB SD card RAM
  • Laserclass 2 laser plummet
  • IP66 dustproof and water resistant
  • 1 keyboard
  • 3.5” QVGA grayscale LCD display
  • Uses an exchangeable Li-ion battery
  • Battery life up to 30 hours

Kelengkapan dalam Box :

  • LEICA FLEXLINE TS03 Total Station unit
  • Adjustment pin, Allen wrench
  • Objective lens cap
  • Carrying case
  • Shoulder strap
  • Vinyl rain/ dust cover
  • Battery charger
  • Li-on battery pack
  • Instruction manual
  • Software Download
  • USB Flashdisk

Kelengkapan Aksesoris :

  • 1x Prisma Poligon
  • 1x Prisma Pole
  • 1x Pole 2,15m
  • 2x Alumunium Tripod

————————————————–
